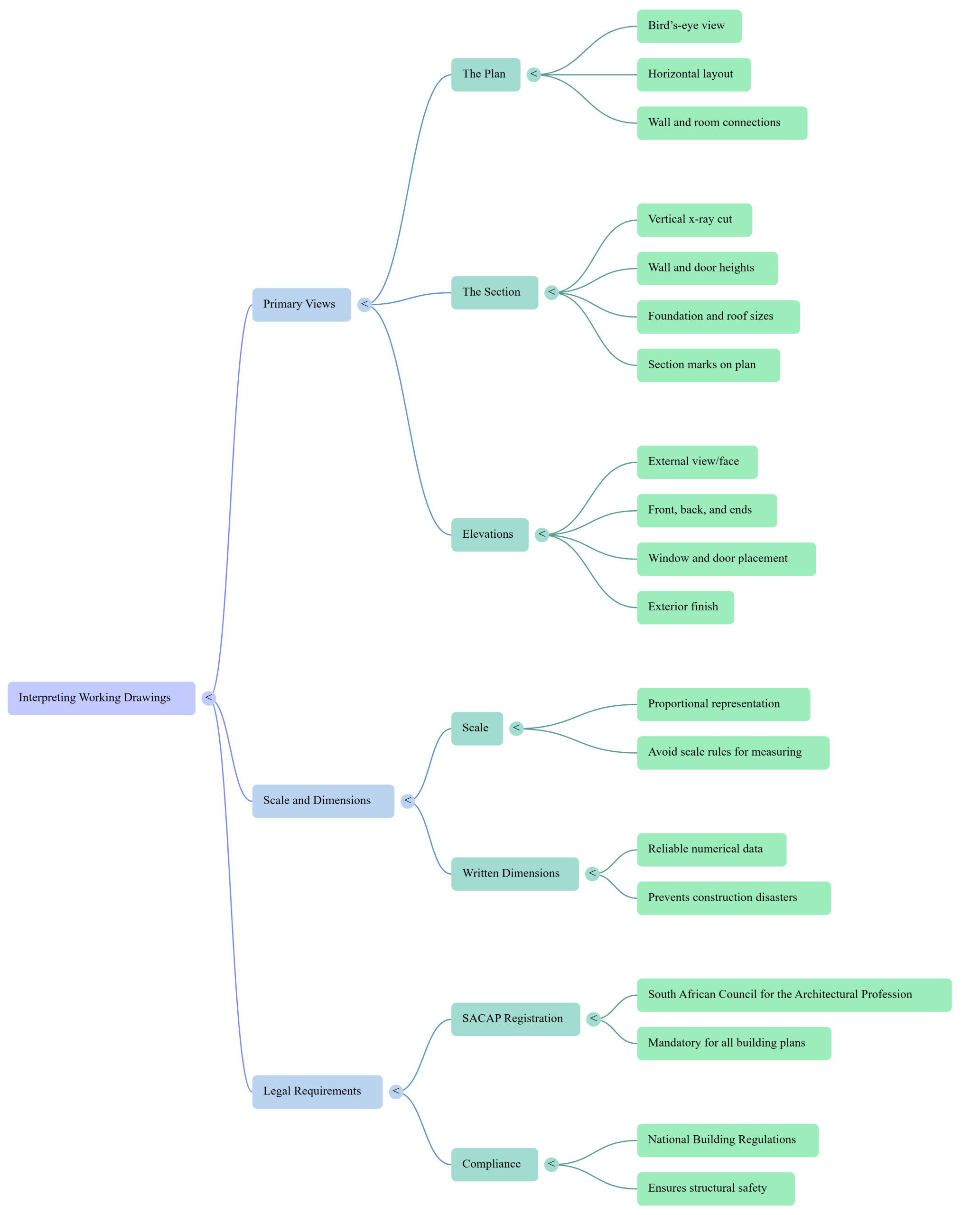

This module breaks down the three essential architectural views:
The Plan: A bird’s-eye view detailing the horizontal layout and room connections.
The Section: A vertical “x-ray” showing internal construction from the foundations to the roof.
The Elevation: The external face of the building, used for aesthetic window/door placement and exterior finishes.
Technical Accuracy & Legal Compliance: Accuracy is paramount in construction; you will learn why a professional must always rely on written dimensions rather than scaled measurements, as a mere 5mm error at the foundation can lead to a 50mm disaster at the roof. Finally, the course covers critical legal standards, explaining why all building plans in South Africa must be produced by a professional registered with SACAP (South African Council for the Architectural Profession) to ensure the structure is safe, legal, and compliant with National Building Regulations
